1600kv HML50M01 RCM-BL500M 500ブラシレスモーター【90%OFFSALE】【在庫限り】【すべてのサポート対象外】
※こちらの商品はアウトレット品につきご注文後のサポートの対象外となりますことを
予めご了承くださいますようお願い申し上げます。
Instructions: |
Specification: |

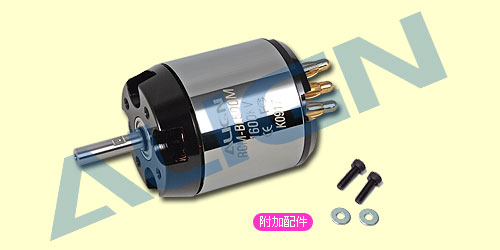

1.The 500M motor features shelterless design to create the advantages of heat
release and low temperature variant. The extended diameter for the rotor make it
even more efficiency and high torque output. 2.The 500M motor armature had a
special balance adjust to improve the serious shaking problem that other tiny
motors have. 3.Maintenance free, high torque, high efficiency, stable and
quiet. 4.High-speed ball bearings, powerful magnetic outrunner
rotor. 5.Suitable for Trex 500 helicopters. Suggested motor pinion gear: 12T
for normal flights and 13T for 3D flights.
|
●Input voltage:DC11.1V-22.2V 3-6cell
Li-Po ●Max continuous current:60A/70A(30sec) ●Max output

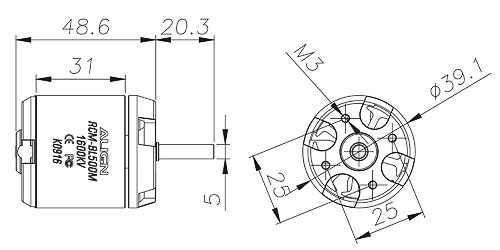

power:1260W/1470W(30sec) ●KV value:1600KV ●Dimension: spindle
5x36x61.1mm ●Weight: 205g (prox.) |
Accessories: |
●Socket screw(M3X10)X2
●Washer(Φ3XΦ8X1)X2 plus ●ALIGN standard 4mm gilt terminal x 3set(Max |
|
|
|
この商品は 2010年02月19日 にカタログに登録されました。 |
|
|
|
