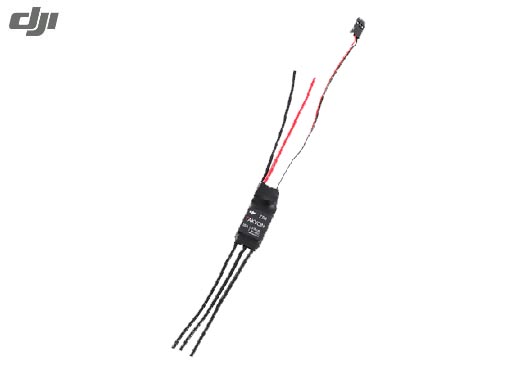

DJI Takyon Z318 ESC 【18A】【25%OFFSALE】【在庫限り】

セール価格:993円 (税抜価格903円)
ポイント: 9P


Built to Race
A custom designed System on a Chip (SOC) and a modular board combine with efficient and intelligent motor control algorithms to make the DJI Takyon series ESC an extraordinarily fast and ultra-accurate motor control system. Using the brand new and intuitive DJI Assistant 2, configuring a wide range of parameters to optimize performance is effortless and firmware updates are easier than ever.

SOC Integration
A custom designed SOC integrates flawlessly with circuits and software algorithms, giving Takyon series ESCs higher performance, increased precision, smaller size and lower weight. All of these factors combine to lower overall power consumption.

Modular Design
A modular board design allows developers and professionals to build complimentary systems. These can be connected through Takyon ESC PCBAs which are made with hard gold plating on the edge connectors to maximize lightness and reduce the weight and size of the board.

Highly Interoperable
Takyon series ESCs support high-speed throttle signals at frequencies up to 500Hz and OneShot125 for a fast throttle response. A wide range of square wave drive brushless motors are usable without manual tuning through complex flux observation and self-adaptation control technologies.

High KV Motor Support
High KV motors used by many racing aircraft are supported through advanced motor control algorithms, opening up new highs in motor speed.

Efficient Active Braking Control
Takyon series ESCs support active braking modes. During flight, aircraft equipped with Takyon can brake fast and maneuver with precision and agility, reducing power loss and improving efficiency.

Real-time Motor Protection
Protecting motors in the event of a locked or blocked rotor takes the form of integrated locked-rotor protection. Takyon series ESCs constantly scan connected motors in real-time and will cut power if motors stall due to a locked rotor. This protects the propulsion system from avoidable damage.

ESC Assistant
The included DJI Assistant 2 simplifies the processes of customizing how an aircraft flies. Set acceleration, timing, active braking, and throttle range according to the specifics of every need, or tune an aircraft for racing quickly and easily. DJI Assistant 2 can also be used for firmware updates, which bring new features and upgraded compatibility.

*Takyon ESC Updater required for parameter settings and firmware updates.

DJI Takyon Z318 ESC  【18A】【25%OFFSALE】【在庫限り】
DJI Takyon Z318 ESC  【18A】【25%OFFSALE】【在庫限り】
DJI Takyon Z318 ESC  【18A】【25%OFFSALE】【在庫限り】
DJI Takyon Z318 ESC  【18A】【25%OFFSALE】【在庫限り】

この商品は 2016年04月25日 にカタログに登録されました。

DJI SNAIL プロペラアダプター シングルペア
DJI SNAIL プロペラアダプター シングルペア

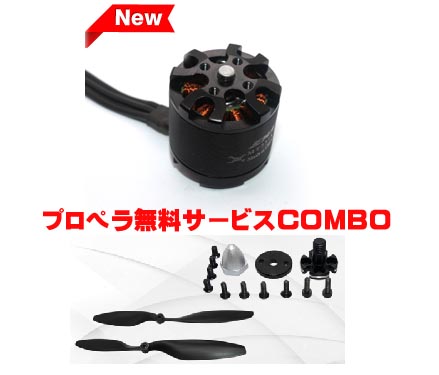

810Kv E-MAX MT 2216 マルチコプター用アウトランナーブラシレスモーター CW(1045ペラサービスCOMBO)【75%OFFSALE】【在庫限り】【すべてのサポート対象外】
